Building a report of linked tags

The Asset Management Module can build a report in Microsoft Excel that lists the tags that are linked to a selected document.

Before you begin

You must have Microsoft Excel installed on your computer to build a report.

To build a report of linked tags:

1. View the Tags property page in PowerUser or the Drawing Tags dialog box in AutoCAD P&ID for the document upon which you want to build the report.
2. Select any row in the tags list. The command buttons become enabled.
3. Select a report definition from the Template list. The report definition must be configured by a system administrator.

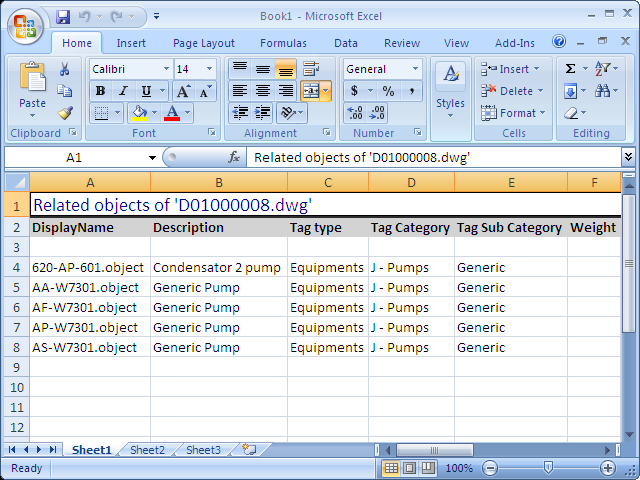

4. Click Create. Microsoft Excel opens and the tag data appears in a new worksheet similar to the following figure.
5. You may format, print, and save the worksheet to meet your needs.
